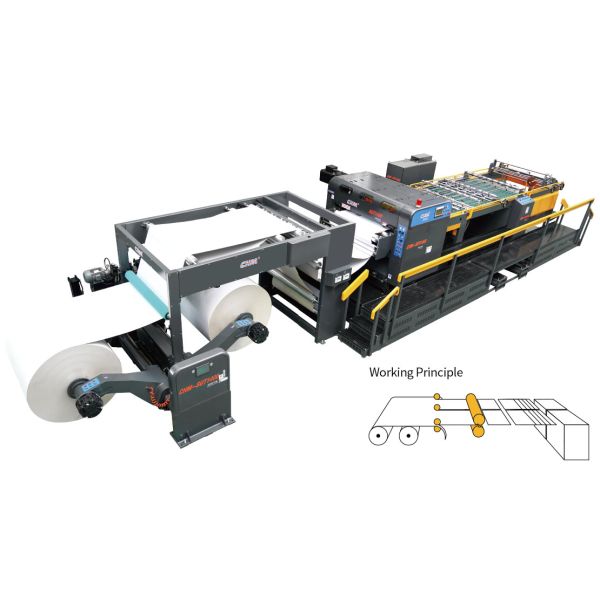

CHM Double Rotary Sheeter Machine - Paper Roll to Roll Cutting Machine
Our High Precision Double Rotary Paper Sheeting Machine delivers exceptional performance with cutting speeds up to 300m/min, providing clean, fiber-less cuts with dimensional accuracy of ±0.5mm.
Key Specifications
| Attribute |
Value |
| Cutting Method |
Upper and lower rotary cutting mechanism |
| Paper Weight Range |
200-1000 GSM |
| Cutting Accuracy |
±0.5mm |
| Max Cutting Speed |
300 sheets/min |
| Max Meter Speed |
300m/min |
| Cutting Length Range |
450-1650mm |
| Max Roll Diameter |
1800mm |
| Stacking Height |
1300mm |
Product Overview
Our High Precision Synchronize-fly Sheeter is engineered for processing board paper, art paper, kraft paper, and packing paper/board with superior cutting quality.
- Fast, stable cutting with AC servo motor drive system
- German precision cutting knives for exceptional accuracy
- User-friendly touch computer interface control
- INK JET, automatic pallet change, and paper splicing systems
- Full automation capability reducing labor requirements by 70%
Technical Specifications by Model
| CHM Type |
CHM-SGT1400 |
CHM-SGT1700 |
CHM-SGT1900 |
| Max Paper Cutting Width |
1400mm |
1700mm |
1900mm |
| Weight |
15000kg |
17000kg |
18400kg |
| Dimensions (L×W×H) |
14453×4675×2350mm |
14453×4975×2350mm |
14453×5175×2350mm |
Advanced Features
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System
Auto Web Guide System

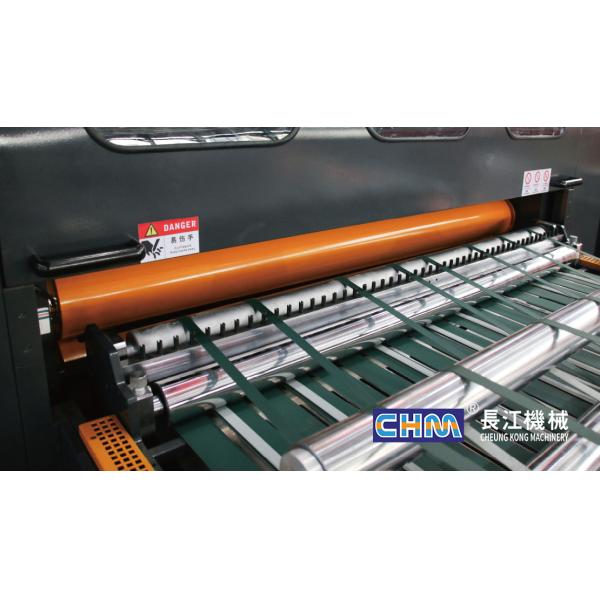

High Precision Cutting Unit
Top and bottom tool apron utilizes advanced cutting technology to reduce noise and load while extending knife service life.
Static Eliminator System
Anti-static bar effectively eliminates static electricity in sheets for improved handling and processing.
Auto Counting and Label Inserting
Precisely counts and inserts labels according to programmed requirements through the HMI interface.
Company Profile
Established in 2004, CHM Machinery has grown into a professional paper sheeter machine manufacturer with three factories across Guangdong, Shandong, and Jiangsu totaling 140,000 square meters - making us the world's second largest sheeting machine manufacturer.
With annual sales exceeding 200 units to over 100 countries, we offer comprehensive solutions including:
- The most professional after-sales team and R&D department
- Over 110 patented technologies
- Custom solutions tailored to your paper type, gram weight, width, and capacity requirements
Frequently Asked Questions
What quality service do you offer?
All parts are guaranteed for one year with lifetime maintenance support. Outside warranty, we provide spare parts and services at preferential prices.
How do you guarantee quality?
We conduct pre-production samples before mass production and final inspection before shipment to ensure consistent quality standards.
Why choose CHM Machinery?
We are the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, extensive patents, and the best R&D team in the industry.
