Product Description
This high-performance paper sheeter features a servo-driven system for exceptional speed, precision, and efficiency. The single rotary sheeter machine utilizes a fixed bottom knife with rotating upper knife design, while the double-rotary version features synchronous upper and lower knives.
The system can be configured with multiple Unwind Stands to handle various paper types simultaneously, including 70 gram double-sided paper with 4-6 rolls processed concurrently.
Ideal for processing a wide range of materials including board paper, art paper, and kraft paper. Widely used in printing, packaging, and paper supply industries.
Key Features
Optional Configuration: More Rolls Cutting
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System

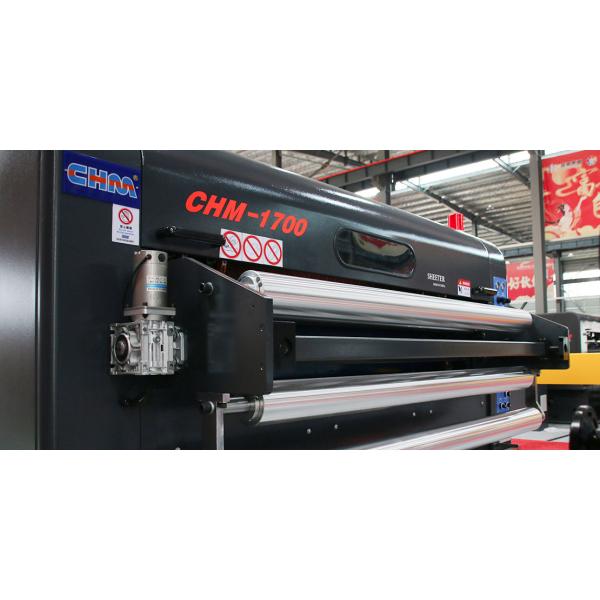

High Precision Single Rotary Sheet Cutter
Conveyor Unit

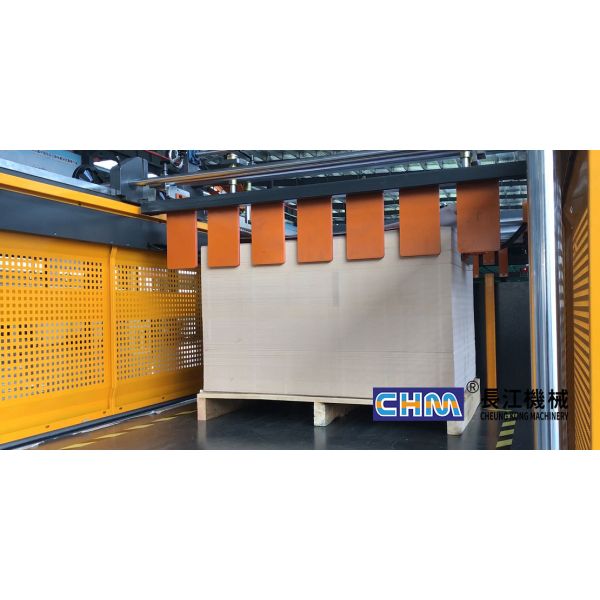

Auto Jogger System
Middle Slitting and Waste Edge Collecting System
1) Style: Adjustable slitting knife and exhaust tube for waste edge on both sides.
2) Top slitter: Adjustable up or down, slitting width can be adjusted manually.
3) Bottom slitter: Fixed position, slitting width adjustable manually.
4) Windmill: Driven motor system.
5) Type-Y collecting pipe: For efficient waste edge collection.
Auto-Squareness Adjustment System
Type: Tool Apron fixed in British style for maximum efficiency.
Control Way: Automatically adjusts paper squareness based on touch screen calibration.
Static Eliminator System
Type: Anti-static bar effectively eliminates static in sheets.
Paper Conveyer System
Type: Horizontal conveying with multi-stage design for efficient counting and piling (includes high efficiency dust collecting equipment).
The first conveying stage: Quickly separates cut paper.
The Second conveying stage: Conveys paper in tile formation at slower speed with single or linkage acting control.
Auto Counting and Label Inserting Device
Type: Precise insertion after counting.
Function:
A) Operates according to requirements after inputting paper piece count in HMI.
B) Refills defective products automatically.
Driving Motor System
- AC servo motor for reclaiming blade
- AC motor for paper conveyor
- Inverter motor for secondary conveyor strap
- AC motor for Stacker up/down movement
- AC motor for front jogger
- AC motor for waste edge collection windmill
- AC motor for unwind stand
Auto-Tension Control
Automatically controls tension based on paper roll diameter and weight input into touch screen.
Auto-EPC (Edge Paper Control)
Features precision sensing nozzle for fast detection of various web lines with high sensitivity.
Company Introduction
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing facilities established in 2004. After 21 years of development, we've grown into a professional manufacturer with three factories spanning nearly 140,000 square meters in Guangdong, Shandong, and Jiangsu.
As the world's second largest sheeting machine manufacturer with independent production capacity, we maintain a professional R&D team and after-sales service network. Our single knife sheeter technology has been cutting paper rolls since 2006, with annual sales exceeding 200 units distributed to over 100 countries worldwide.
We offer customized solutions based on your specific paper type, gram weight, width, and capacity requirements. Contact us for detailed inquiries.
Frequently Asked Questions
1. Who are your cooperative partners?
We work with major paper mills including Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenming Paper, JHE Paper, and C&CJOINTPRINTING CO.(HK)LID.
2. What kind of quality service do you offer?
All parts are guaranteed for one year, with lifetime maintenance support from CHM Machinery. Outside warranty periods, we provide spare parts and services at preferential prices with prompt response.
3. How do you guarantee quality?
We implement strict quality control measures including pre-production samples and final inspection before shipment.
4. What products do you offer?
We manufacture paper sheeter machines, paper cutters, copy paper and packaging machines, and cut-to-size paper solutions. As the only Hong Kong brand sheet machinery producer in China with the second largest facility worldwide, we hold over 110 patents and maintain a dedicated R&D team.
5. Who are we?
Headquartered in Guangdong, China since 2010, we serve global markets including East Asia (10%), Africa (5%), South America (5%), Domestic Market (3%), Northern Europe (3%), and other regions worldwide. Our organization employs 101-200 professionals.
